Technische Übersicht
Rahmenset
Rahmen:
Timemachine Road 01 Premium Carbon with Aero Module Tuned Compliance Concept Speed | ICS Aero Technology Stealth Cable Routing | Integrated Seatpost clamp | Flat Mount Disc | 12 x 142mm Thru-Axle
Gabel:
Timemachine Road 01 Premium Carbon with Integrated Aero Cover Tuned Compliance Concept Speed | ICS Technology Stealth Cable Routing | Flat Mount Disc | 12 x 100mm Thru-Axle | 48mm offset (Size 47-51) 43mm offset (Size 54-61)
Cockpit
Vorbau:

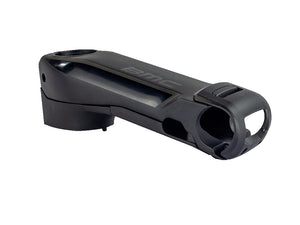

BMC ICS Aero | Integrated Aero Cockpit Design
Lenker:
BMC ICS Aero | Aero Top Shape | Compact Bend
Sattel
Sattelstütze:
Timemachine Road 01 Premium Carbon Aero Seatpost | 0 | 15 | 30mm adjustable Offset
Sattel:
Fizik Argo Vento R1 | 140mm
Antrieb
Kurbel:
SHIMANO Dura Ace FC-R9200
Kettenblätter:
52-36T
Leistungsmesser:
Kassette:
SHIMANO Dura Ace CS-R9200
Kassettengrösse:
11-30T
Kette:
SHIMANO CN-M9100
Umwerfer:
SHIMANO Dura Ace Di2 FD-R9250
Schaltwerk:
SHIMANO Dura Ace Di2 RD-R9250
Schalthebel:
SHIMANO Dura Ace Di2 ST-R9270
Übersetzung:
2 x 12
Tretlager:
PF86 Bottom Bracket
Bremsen
Bremshebel:
SHIMANO Dura Ace BR-R9270
Bremsscheiben:
SHIMANO RT-MT900
Bremsscheibengrösse (V/H):
160 / 140mm
Räder
Felgen:
DT Swiss ARC 1100 | 62mm
Naben (V/H):
DT Swiss 180 Straightpull | Ratchet EXP 36 | SINC Ceramic Bearings
Bereifung:
Pirelli P Zero Race TLR SL
Zubehör
Aerocore Bottle Cages
Weitere Informationen
Reifenfreiheit:
28mm
ASTM-Klassifizierung:
Level 1
Maximales Systemgewicht:
110kg
| Size | 47 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Rider Height | <166 | 166-174 | 172-180 | 178-186 | 184-192 | >190 |
| Reach | 373 | 381 | 390 | 395 | 405 | 413 |
| Stack | 496 | 520 | 540 | 555 | 574 | 598 |
| Bar Drop | 122 | 122 | 122 | 122 | 122 | 122 |
| Bar Reach | 66 | 66 | 66 | 66 | 66 | 66 |
| Bar Rise | ||||||
| Bar Sweep | ||||||
| Bar Width | 400 | 420 | 420 | 420 | 420 | 440 |
| Base Bar Drop Flat Cockpit | ||||||
| Base Bar Drop V-Cockpit | ||||||
| Base Bar Reach Flat Cockpit | ||||||
| Base Bar Reach V-Cockpit | ||||||
| BB Drop | 70 | 70 | 70 | 70 | 70 | 70 |
| BB Drop (SLACK) | ||||||
| BB Drop (STEEP) | ||||||
| BB Height (SLACK) | ||||||
| BB Height (STEEP) | ||||||
| Chainstay | ||||||
| Crank Length | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| LT | BB Drop (SLACK) | ||||||
| LT | BB Drop (STEEP) | ||||||
| LT | BB Height (SLACK) | ||||||
| LT | BB Height (STEEP) | ||||||
| LT | Chainstay | ||||||
| LT | Fork Length | ||||||
| LT | Fork Rake | ||||||
| LT | Frame Size | ||||||
| LT | Front Center (SLACK) | ||||||
| LT | Front Center (STEEP) | ||||||
| LT | Head Tube | ||||||
| LT | HT Angle (SLACK) | ||||||
| LT | HT Angle (STEEP) | ||||||
| LT | Reach (SLACK) | ||||||
| LT | Reach (STEEP) | ||||||
| LT | Rider Height | ||||||
| LT | Seat Tube | ||||||
| LT | ST Angle @750mm Saddle Height (SLACK) | ||||||
| LT | ST Angle @750mm Saddle Height (STEEP) | ||||||
| LT | ST Angle Actual (SLACK) | ||||||
| LT | ST Angle Actual (STEEP) | ||||||
| LT | ST Angle Effective (SLACK) | ||||||
| LT | ST Angle Effective (STEEP) | ||||||
| LT | Stack (SLACK) | ||||||
| LT | Stack (STEEP) | ||||||
| LT | Stand Over Height (80 in Front of BB) | ||||||
| LT | Stand Over Height (Lowest Point) | ||||||
| LT | Top Tube (SLACK) | ||||||
| LT | Top Tube (STEEP) | ||||||
| LT | Wheelbase (SLACK) | ||||||
| LT | Wheelbase (STEEP) | ||||||
| ST | BB Drop (SLACK) | ||||||
| ST | BB Drop (STEEP) | ||||||
| ST | BB Height (STACK) | ||||||
| ST | BB Height (STEEP) | ||||||
| ST | Chainstay | ||||||
| ST | Fork Length | ||||||
| ST | Fork Rake | ||||||
| ST | Frame Size | ||||||
| ST | Front Center (SLACK) | ||||||
| ST | Front Center (STEEP) | ||||||
| ST | Head Tube | ||||||
| ST | HT Angle (SLACK) | ||||||
| ST | HT Angle (STEEP) | ||||||
| ST | Reach (SLACK) | ||||||
| ST | Reach (STEEP) | ||||||
| ST | Rider Height | ||||||
| ST | Seat Tube | ||||||
| ST | ST Angle @750mm Saddle Height (SLACK) | ||||||
| ST | ST Angle @750mm Saddle Height (STEEP) | ||||||
| ST | ST Angle Actual (SLACK) | ||||||
| ST | ST Angle Actual (STEEP) | ||||||
| ST | ST Angle Effective (SLACK) | ||||||
| ST | ST Angle Effective (STEEP) | ||||||
| ST | Stack (SLACK) | ||||||
| ST | Stack (STEEP) | ||||||
| ST | Stand Over Height (80 in Front of BB) | ||||||
| ST | Stand Over Height (Lowest Point) | ||||||
| ST | Top Tube (SLACK) | ||||||
| ST | Top Tube (STEEP) | ||||||
| ST | Wheelbase (SLACK) | ||||||
| ST | Wheelbase (STEEP) | ||||||
| Fork Length | 379 | 379 | 374 | 374 | 374 | 374 |
| Fork Rake | 50 | 50 | 45 | 45 | 45 | 45 |
| Frame Size | ||||||
| Front Center | 577 | 592 | 594 | 604 | 620 | 636 |
| Front Center (SLACK) | ||||||
| Front Center (STEEP) | ||||||
| Head Tube | 88 | 113 | 135 | 150 | 170 | 196 |
| Head Tube Angle | 71.2 | 71.2 | 72 | 72 | 72 | 72 |
| HT Angle (SLACK) | ||||||
| HT Angle (STEEP) | ||||||
| Pad Reach Flat Cockpit | ||||||
| Pad Reach V-Cockpit | ||||||
| Pad Stack Flat Cockpit | ||||||
| Pad Stack V-Cockpit | ||||||
| Reach (SLACK) | ||||||
| Reach (STEEP) | ||||||
| Rear Center | 410 | 410 | 410 | 410 | 410 | 410 |
| Saddle Height Range | ||||||
| Seat Angle | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
| Seat Tube | 480 | 518 | 548 | 568 | 588 | 611 |
| Seatpost Drop | ||||||
| Seatpost Length | 210 | 210 | 270 | 270 | 270 | 270 |
| Seatpost Offset | 0 / 15 / 30 | 0 / 15 / 30 | 0 / 15 / 30 | 0 / 15 / 30 | 0 / 15 / 30 | 0 / 15 / 30 |
| ST Angle @750mm Saddle Height (SLACK) | ||||||
| ST Angle @750mm Saddle Height (STEEP) | ||||||
| ST Angle Actual (SLACK) | ||||||
| ST Angle Actual (STEEP) | ||||||
| ST Angle Effective (SLACK) | ||||||
| ST Angle Effective (STEEP) | ||||||
| Stack (SLACK) | ||||||
| Stack (STEEP) | ||||||
| Stand Over Height (80 in Front of BB) | ||||||
| Stand Over Height (Lowest Point) | ||||||
| Standover Height | 743 | 774 | 799 | 816 | 834 | 858 |
| Stem Angle | -15 | -15 | -15 | -15 | -15 | -15 |
| Stem Length | 100 | 100 | 110 | 110 | 110 | 120 |
| Top Tube | 520 | 535 | 550 | 560 | 575 | 590 |
| Top Tube (SLACK) | ||||||
| Top Tube (STEEP) | ||||||
| Trail | 62 | 62 | 62 | 62 | 62 | 62 |
| Wheelbase | 975 | 991 | 994 | 1004 | 1020 | 1036 |
| Wheelbase (SLACK) | ||||||
| Wheelbase (STEEP) |
