URS 01 LT ONE

URS 01 LT ONE

Metallic White / Black

Bring it on! No terrain is rough anymore! Highly capable URS01 frameset with MTT suspensions, the newest SHIMANO GRX RX825 and tubeless AG 20 wheels.

Regular priceEUR 5.999,00
EUR /

SKU: 30007078
Size

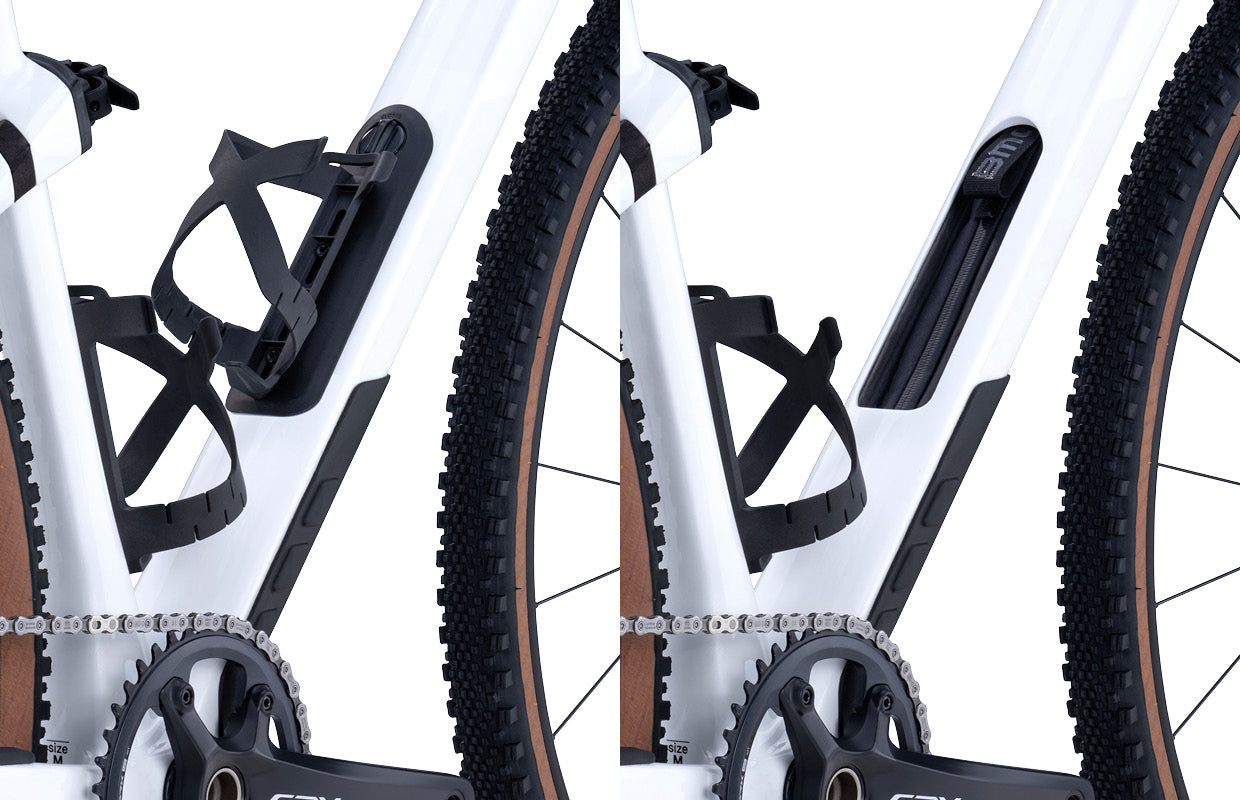

As capable as you wished for, the URS 01 frameset is fitted with the 20mm of plush travel from the Micro Travel Technology fork and seatstays dampening system. With the newest SHIMANO GRX RX825 Di2 transmission, shifting is smooth and direct. Tubeless AG 20 gravel alloy wheels are fitted with grippy 44mm tires. All your essentials will be comfortably stored in the dowtube storage while you will be giving all to the trail suspended by Micro Travel Technology suspension stem and rear triangle - perfectly tuned for bold off-grid adventures.

Technology

Technical Overview

Frameset

Frame:
URS 01 Premium Carbon with Micro Travel Technology | Gravel+ Geometry | ICS Technology | Integrated Storage | Fender and Rack Mounts | Flat Mount Disc | 12 x 142mm Thru-Axle | UDH Droput

Fork:

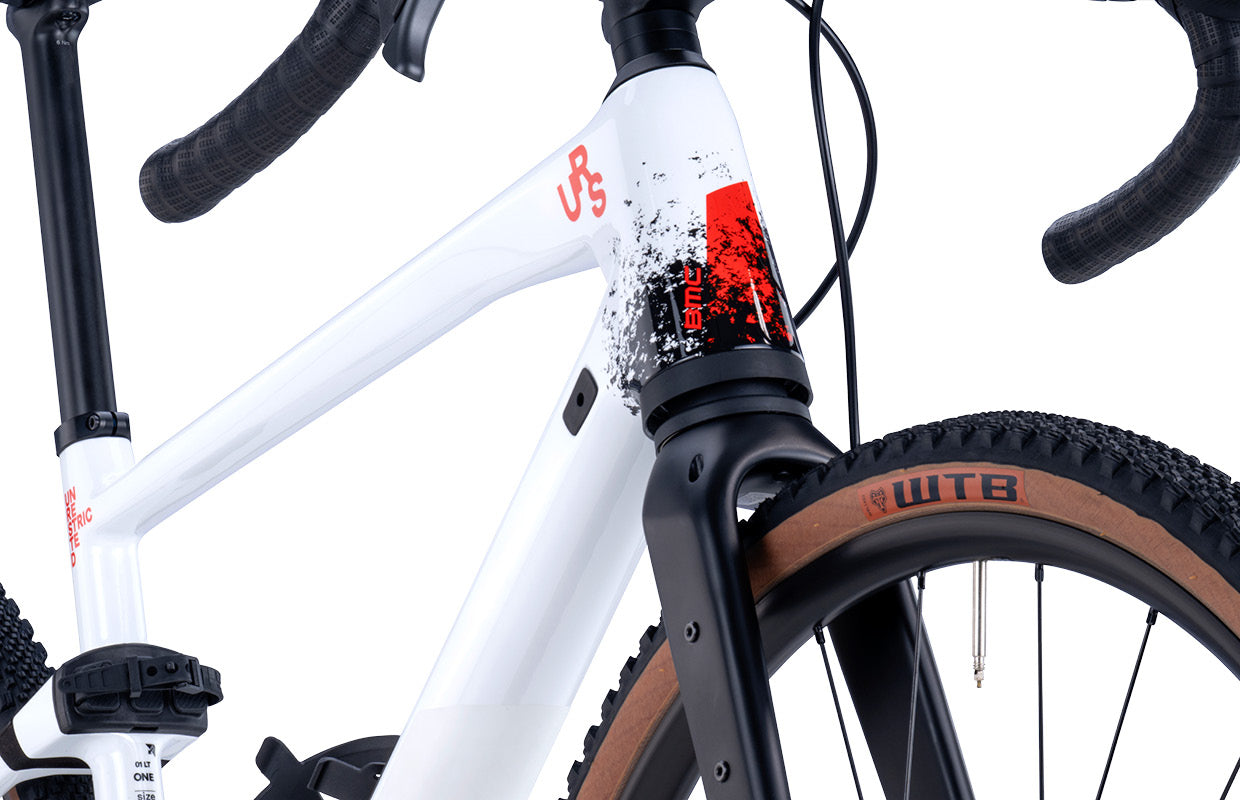

Micro Travel Technology Suspension Fork Premium Carbon blades | 20mm Travel | Coil Spring & Hydraulic Damper | Fender Mounts | Flat Mount Disc | 12 x 100mm Thru-Axle

Suspension

Front Suspension:
Micro Travel Technology Suspension Fork | Premium Carbon Blades | 20mm Travel | Coil Spring & Hydraulic Damper | Cargo Mounts | Fender Mounts | Hub-Dynamo Cable Routing

Rear Suspension:

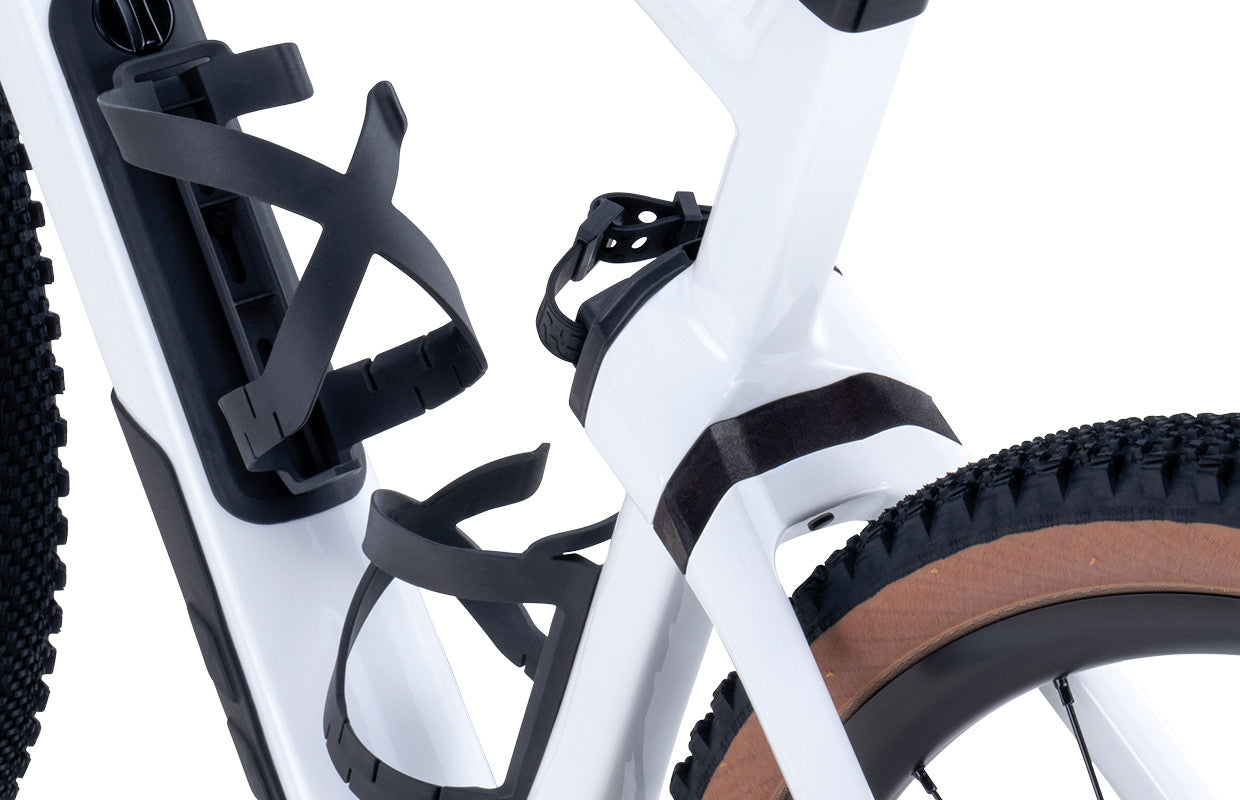

Micro Travel Technology Stays

Cockpit

Stem:
BMC MSM

Handlebar:
BMC HB D4 03, 0, 16 | Alloy 6061 | Gravel Geometry | 115mm drop, 70mm reach, 16° flare

Seat

Seatpost:
URS 01 | 01 Premium Carbon D-Shaped Seatpost | 0mm Offset | D-Fender Compatible

Saddle:
WTB Gravelier Steel SL | Medium

Drivetrain

Crankset:
SHIMANO GRX (RX820-1)

Chainrings:
40T

Cassette:
SHIMANO Deore XT (CS-M8200-12)

Cassette Size:
10-51T

Chain:
SHIMANO CN-M8100

Rear Derailleur:
SHIMANO GRX Di2 Wireless (RD-RX827)

Shifters:
SHIMANO GRX Di2 (BL-RX825 / ST-RX825)

Gears:
1 x 12

Bottom Bracket:
SHIMANO Ultegra Press-Fit Bottom Bracket (SM-BB72-41B)

Brakes

Brake Levers / Calipers:
SHIMANO GRX (BR-RX820)

Rotors:
SHIMANO RT-CL800 | Centerlock

Rotor Size (F/R):
180 / 160mm

Wheels

Rims:
AG 20 | Tubeless Ready | 20mm

Hubs (F/R):
AG 20

Tires:
WTB Raddler | 44mm

Tubeless Information:
Tubeless Rim | Tubeless Tires

Accessories

In the Box:
X-Cages │Storage Pouch

Additional Information

Tire Clearance:
47mm measured tire

ASTM Classification:
Level 2

System Weight Limit:
120kg

General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)
