Technologie
Aperçu technique
Kit cadre
Cadre:
Teammachine 01 AMP | 01 Premium Carbon with Aerocore Design | Integrated Battery | ICS Technology Stealth Cable Routing | Stealth Dropout Design | TCC Race Compliance Level | Flat Mount Disc | 12 x 142mm Thru-Axle
Fourche:
Teammachine 01 AMP | 01 Premium Carbon | ICS Technology Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle | 48mm offset Size 47-51 | 43mm offset Size 54-61
E-System
Unité Moteur:
TQ-HPR40 Drive Unit
Batterie:

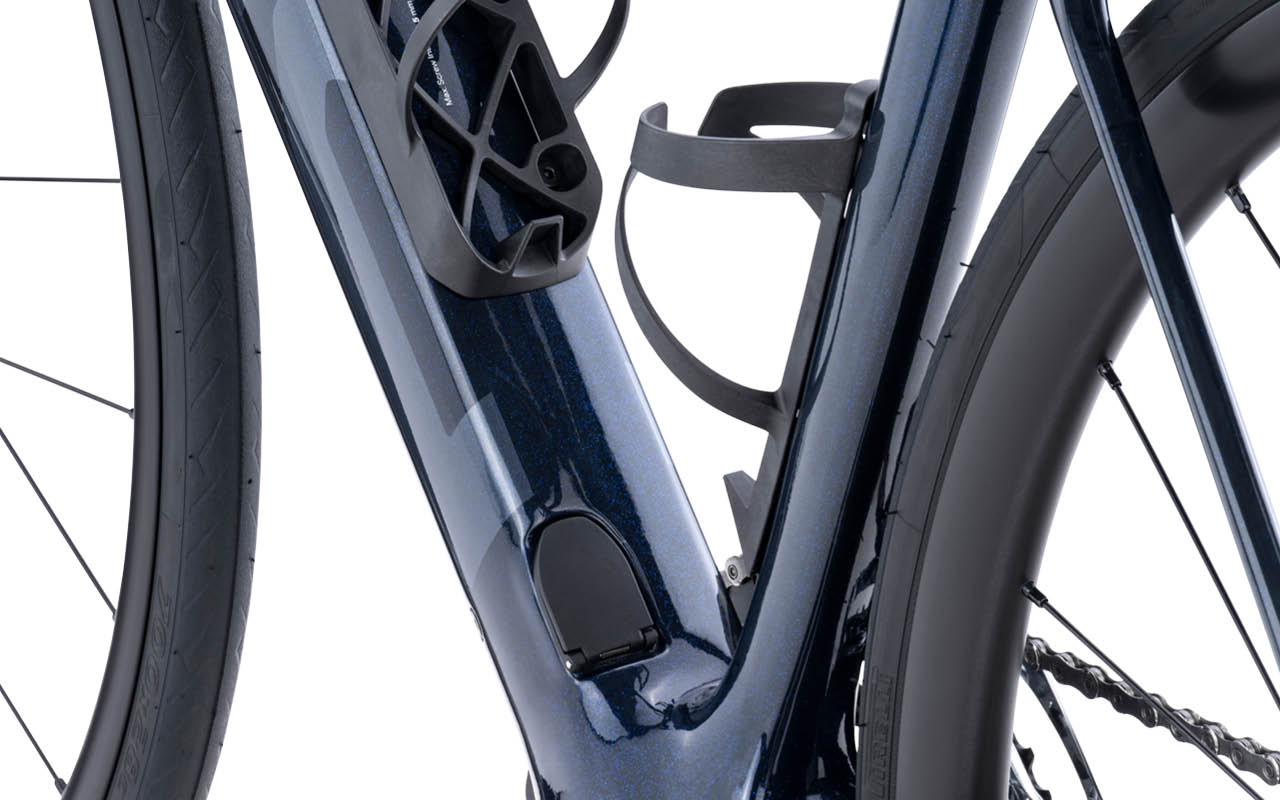

TQ Battery | 290 Wh | Certified by UL LLC
Écran:
TQ Grafic color Display | 2" O-LED | Bluetooth / ANT+
Commande d'Assistance:
TQ Remote
Chargeur:
TQ 4A Charger
Cockpit
Potence:

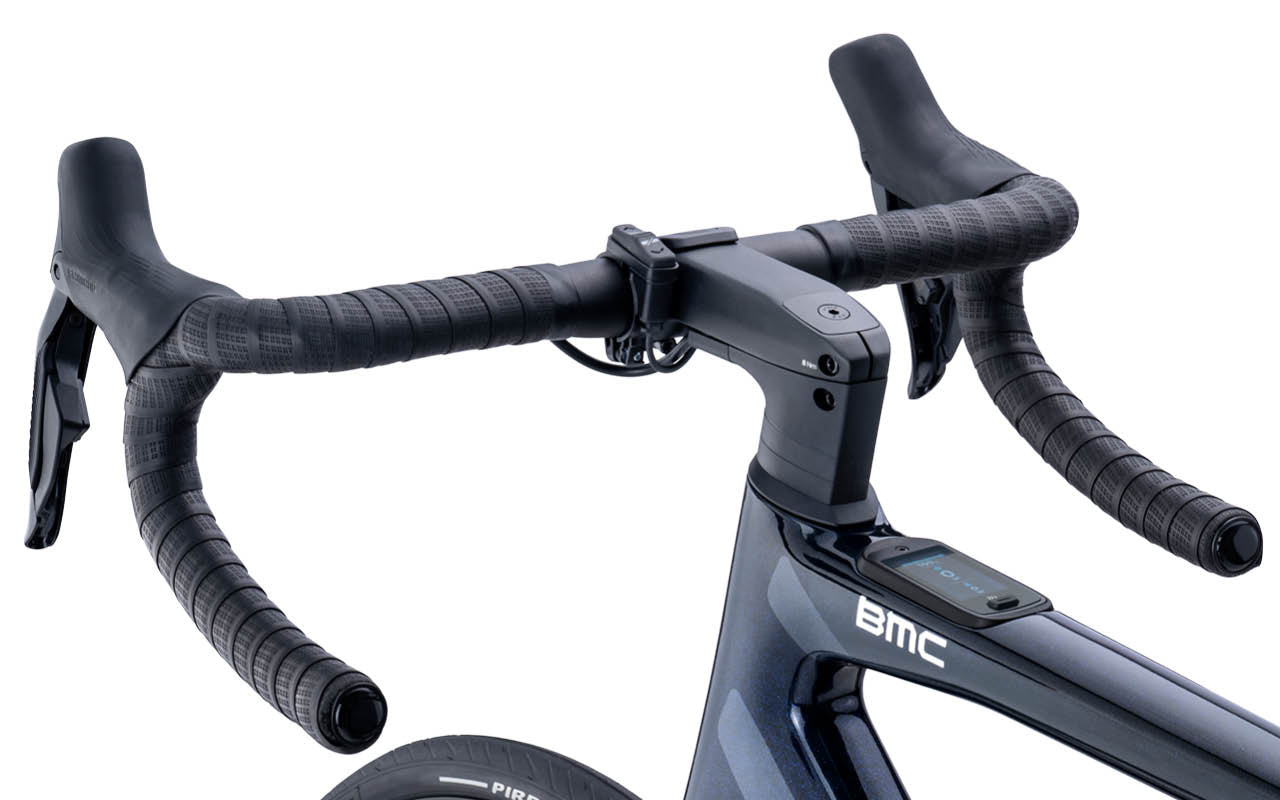

BMC ICS2 | Integrated Cockpit System Technology
Cintre:
BMC HB D4 03, 0, 6 | Alloy 6061 | Race Geometry | 135mm drop, 70mm reach, 6° flare
Grips / Guidoline:
BMC Tacky 3mm
Seat
Tige de Selle:
Teammachine SLR 01 Gen 5 | 01 Premium Carbon Aero Shaped Seatpost | 0mm Offset Size 47-51 and 10mm Offset Size 54-61
Selle:
Fizik Vento Argo X5 | 140mm
Transmission
Pédalier:

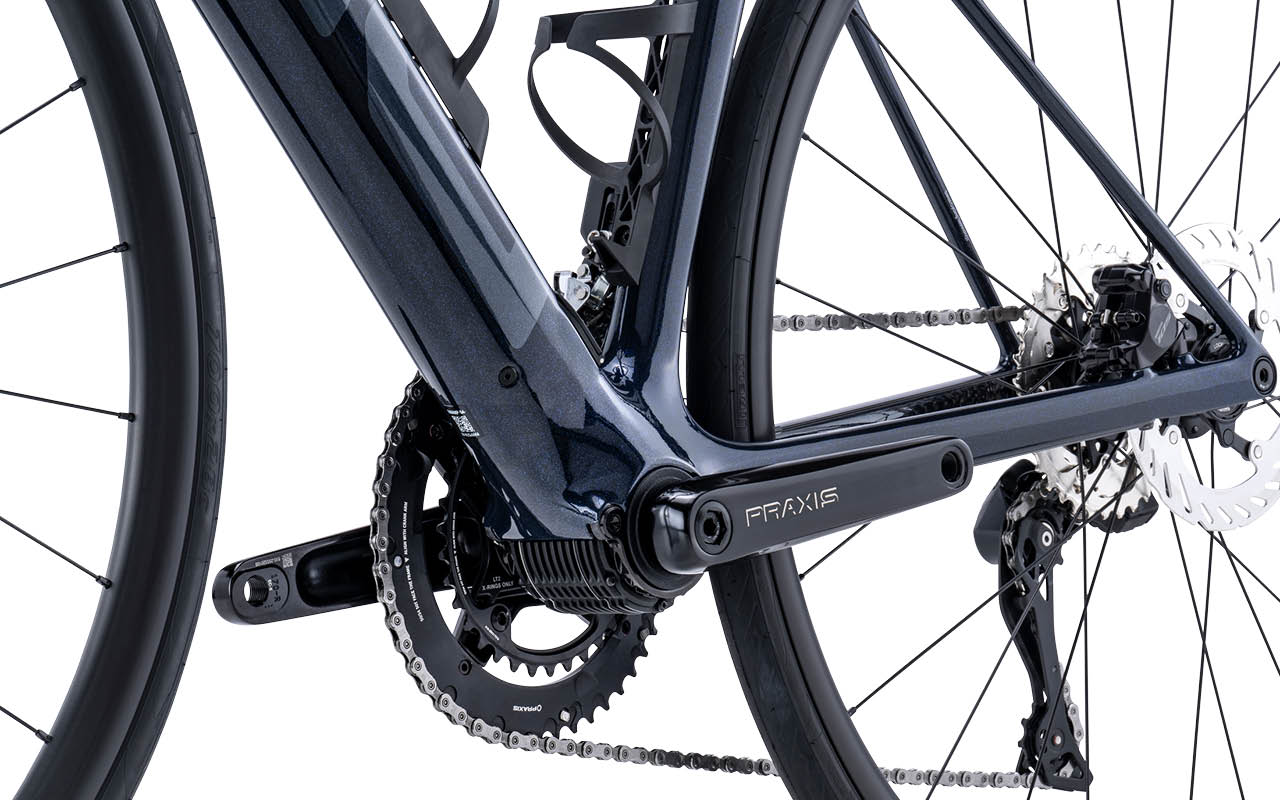

Praxis Type-5 eCrank Alloy Road | LT2 chainrings | 46mm chainline
Plateaux:
50-34T
Capteur de puissance :
TQ drive unit power meter
Cassette:
SHIMANO CS-HG710
Taille de cassette:
11-36T
Chaîne:
SHIMANO CN-M6100
Dérailleur Avant:
SHIMANO 105 Di2 FD-R7150
Dérailleur Arrière:
SHIMANO 105 Di2 RD-R7150
Leviers de Vitesses:
SHIMANO 105 Di2 ST-R7170
Vitesses:
2 x 12
Freins
Leviers de Frein / Étriers:
SHIMANO 105 BR-R7170
Disques:
SHIMANO 105 (RT-CL700)
Largeur de Pedalier:
160 / 160mm
Roues
Jantes:
AR 27 | Tubeless Ready | 27mm
Moyeux:
CL-712 & RXC-142S Center Lock
Pneus:
Pirelli P Zero Road TLR | Tubeless | 28mm
Information Tubeless:
Tubeless Rim | Tubeless Tires
Accessoires
Contenu inclu dans la boite:
Integrated Bottle Cages | Integrated Rear Light 20 StVZO | Computer mount for Garmin, Wahoo and GoPro mount
Informations supplémentaires
Espace pour les pneus:
34mm measured tire
Poids sans Pédales:

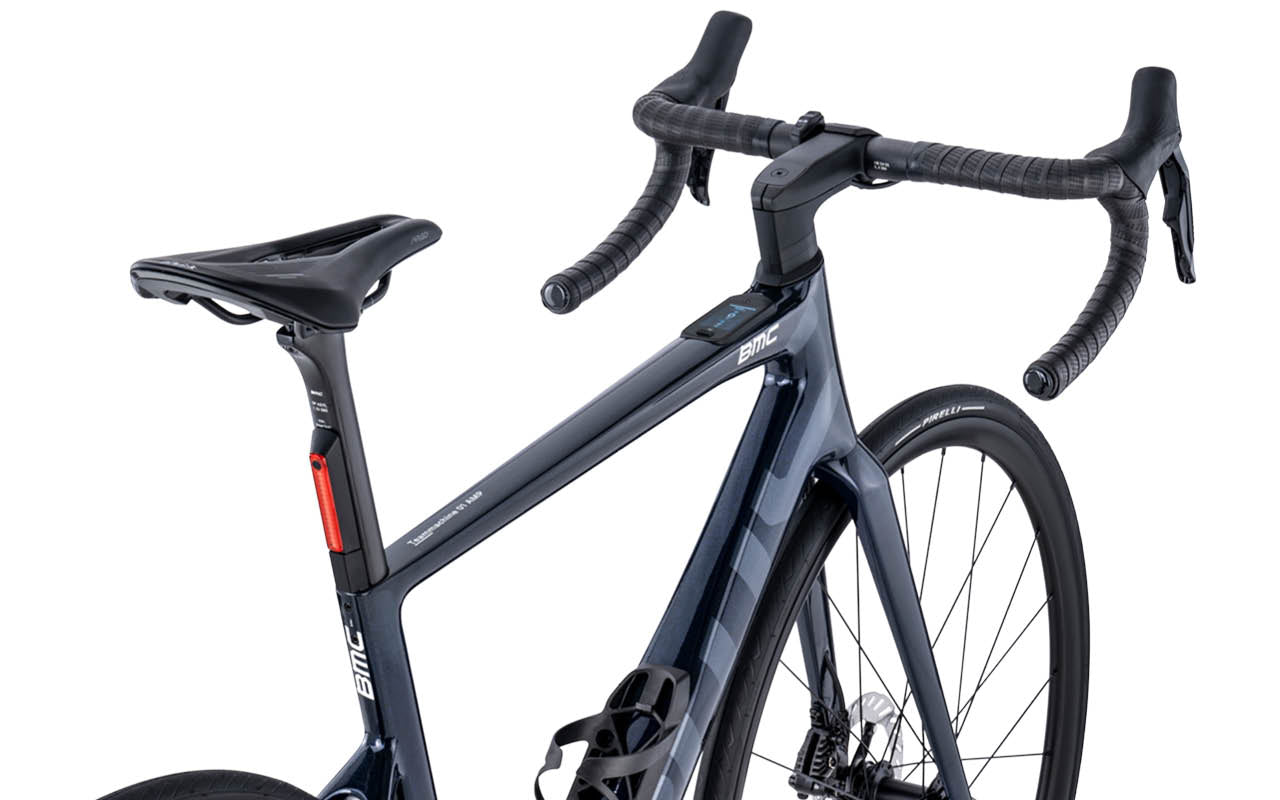

11.1kg | Size 54 as pictured with all accessories
Classification ASTM:
Level 1
Limite de poids du système:
110kg
Règlement relatif à la sécurité générale des produits (GPSR):
Consignes de sécurité GPSR (UE)
Personne responsable conformément au GPSR (UE)
| Size | 47 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Rider Height | <166 | 166-174 | 172-180 | 178-186 | 184-192 | >190 |
| Reach | 367 | 377 | 386 | 392 | 401 | 409 |
| Stack | 526 | 550 | 570 | 585 | 604 | 628 |
| Bar Drop | 125 | 125 | 125 | 125 | 127 | 125 |
| Bar Reach | 80 | 80 | 80 | 80 | 68 | 80 |
| Bar Width | 390/414 | 390/414 | 390/414 | 410/434 | 400/436 | 430/454 |
| BB Drop | 69 | 69 | 69 | 69 | 69 | 69 |
| Crank Length | 165 | 165 | 170 | 170 | 172.5 | 172.5 |
| Fork Length | 372.5 | 372.5 | 372.5 | 372.5 | 372.5 | 372.5 |
| Fork Rake | 48 | 48 | 43 | 43 | 43 | 43 |
| Front Center | 573 | 591 | 594 | 605 | 620 | 635 |
| Head Tube | 118 | 143 | 160 | 176 | 196 | 221 |
| Head Tube Angle | 71.5° | 71.5° | 72.3° | 72.3° | 72.3° | 72.3° |
| Rear Center | 412.5 | 412.5 | 412.5 | 412.5 | 412.5 | 412.5 |
| Seat Angle | 73.5° | 73.5° | 73.5° | 73.5° | 73.0° | 73.0° |
| Seat Tube | 422 | 464 | 500 | 510 | 530 | 555 |
| Seatpost Length | 335 | 335 | 385 | 385 | 405 | 405 |
| Seatpost Offset | 0 | 0 | 10 | 10 | 10 | 10 |
| Standover Height | 728 | 758 | 788 | 800 | 818 | 840 |
| Stem Angle | -12.5° | -12.5° | -12.5° | -12.5° | -12.5° | -12.5° |
| Stem Length | 80 | 90 | 90 | 100 | 110 | 110 |
| Top Tube | 523 | 540 | 555 | 565 | 587 | 601 |
| Trail | 64.5 | 64.5 | 64.5 | 64.5 | 64.5 | 64.5 |
| Wheelbase | 974 | 992 | 995 | 1006 | 1021 | 1036 |
