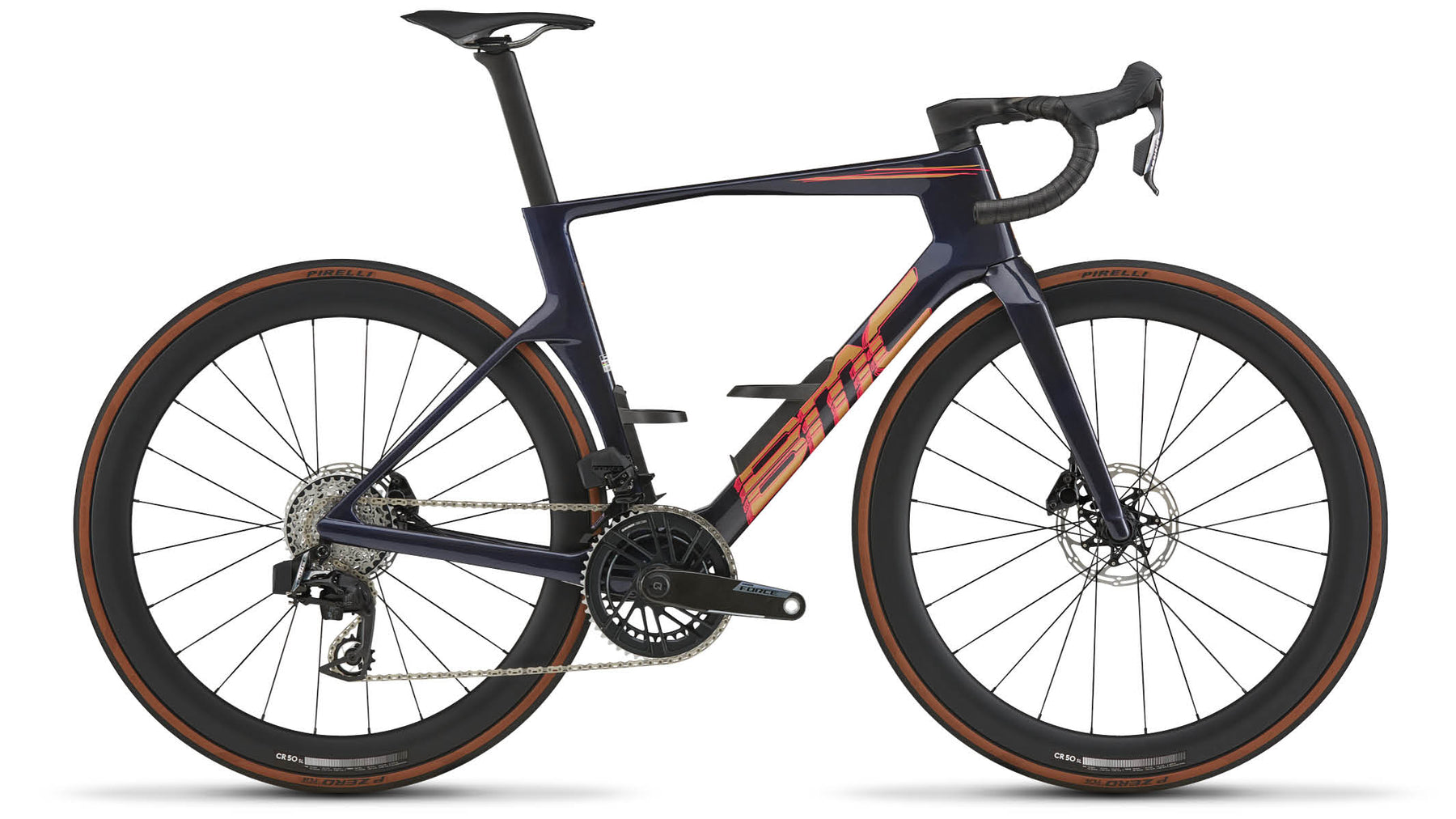

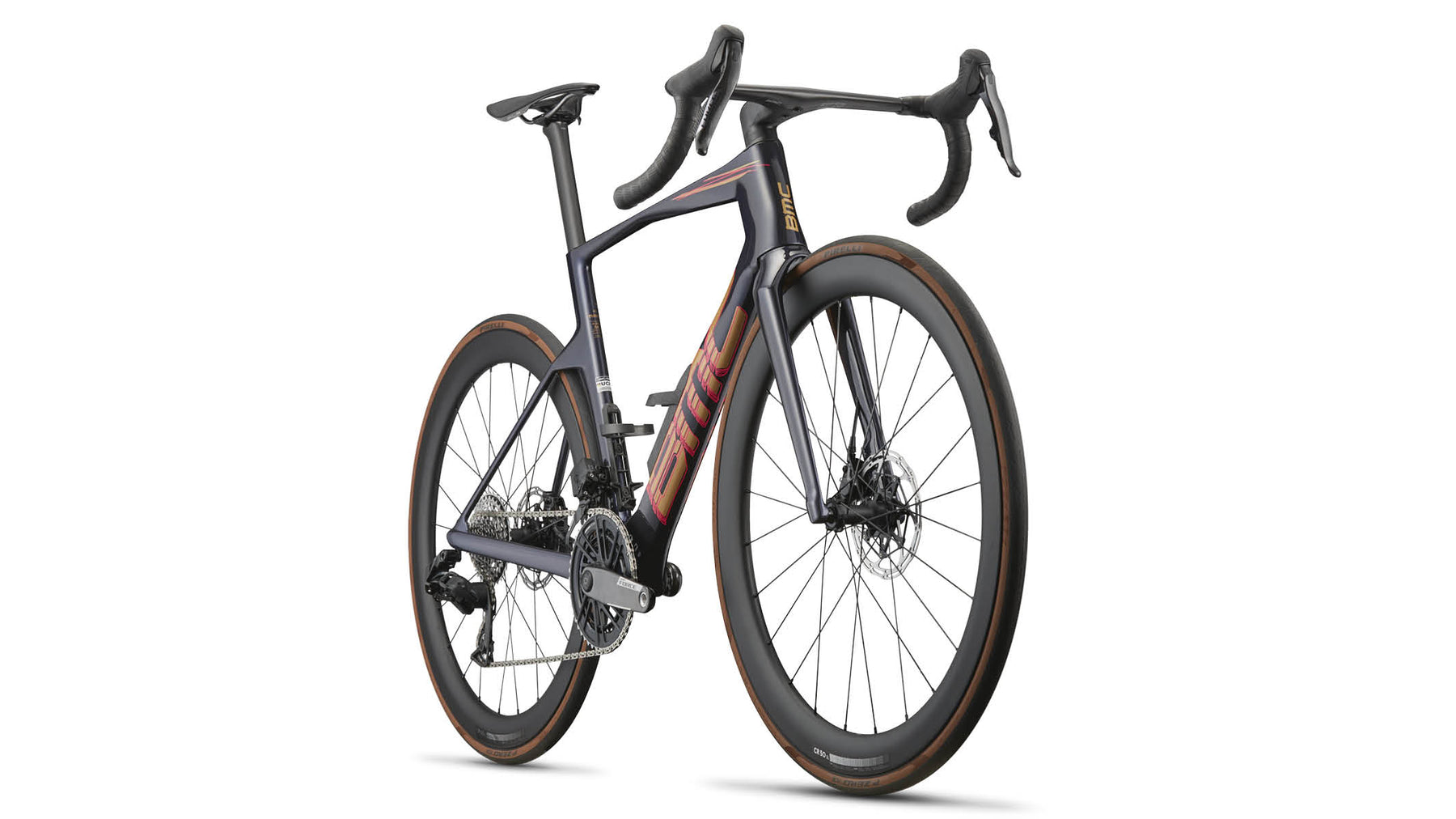

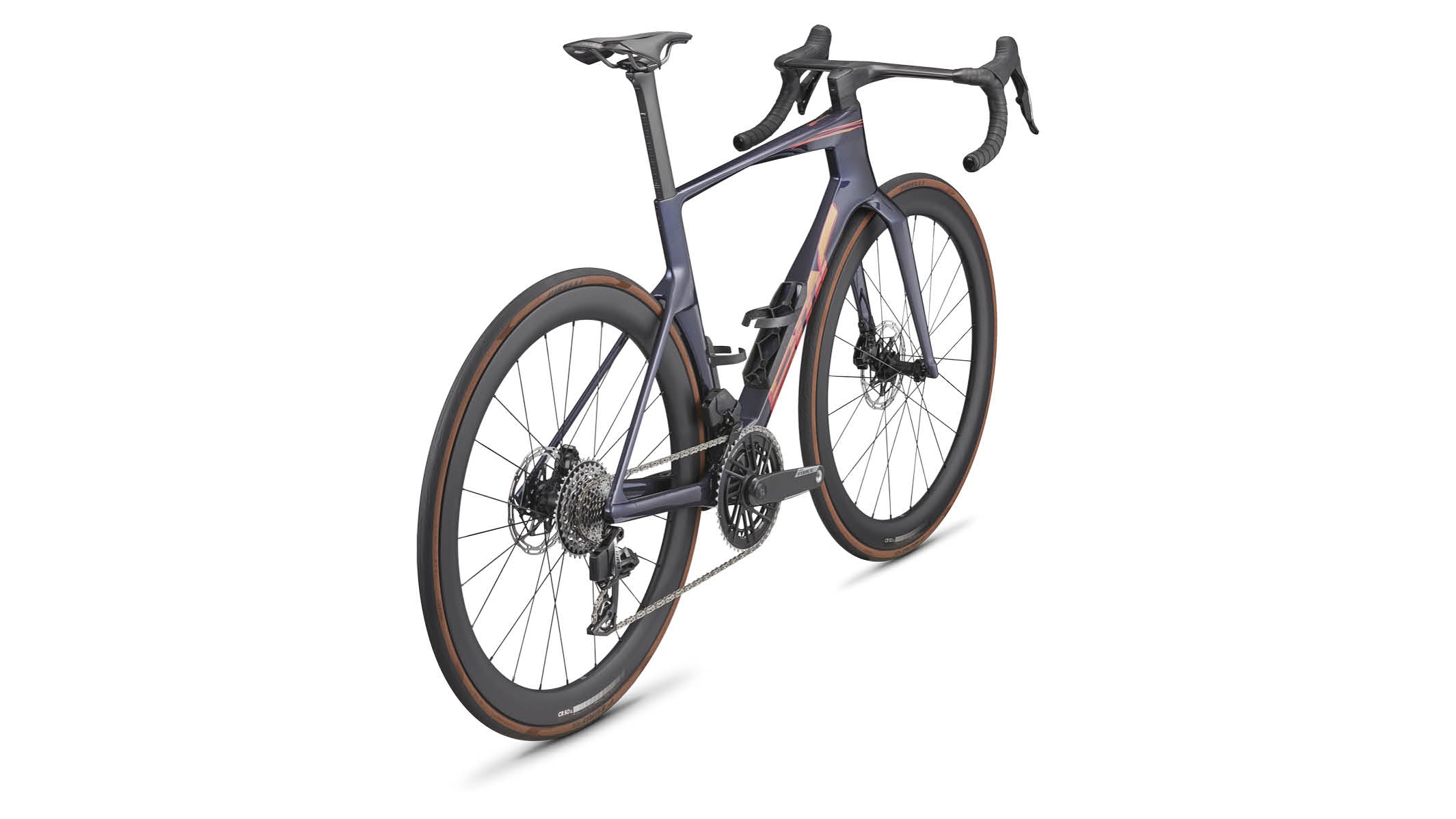

Name: Teammachine R 01 THREE
Brand: BMC
SKU: 30008077
Price: 8499.0 EUR
Availability: InStock

Blue Carbon Doodle

The Teammachine R 01 THREE has full race intent. Designed with Red Bull Advanced Technologies for serious speed and precision.

EUR 8.499,00

SKU: 30008077

Size —

Low stock - 5 items left
Inventory on the way

Compatible Parts & Accessories

Check for availability within our Retailer Network

[{"id":56310557442434,"title":"47","option1":"47","option2":null,"option3":null,"sku":"30008077","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Teammachine R 01 THREE - 47","public_title":"47","options":["47"],"price":849900,"weight":14,"compare_at_price":849900,"inventory_quantity":5,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906534724","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":56310557475202,"title":"51","option1":"51","option2":null,"option3":null,"sku":"30008078","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Teammachine R 01 THREE - 51","public_title":"51","options":["51"],"price":849900,"weight":14,"compare_at_price":849900,"inventory_quantity":9,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906534717","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":56310557507970,"title":"54","option1":"54","option2":null,"option3":null,"sku":"30008079","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Teammachine R 01 THREE - 54","public_title":"54","options":["54"],"price":849900,"weight":14,"compare_at_price":849900,"inventory_quantity":16,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906534700","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":56310557540738,"title":"56","option1":"56","option2":null,"option3":null,"sku":"30008080","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Teammachine R 01 THREE - 56","public_title":"56","options":["56"],"price":849900,"weight":14,"compare_at_price":849900,"inventory_quantity":17,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906534694","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":56310557573506,"title":"58","option1":"58","option2":null,"option3":null,"sku":"30008081","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Teammachine R 01 THREE - 58","public_title":"58","options":["58"],"price":849900,"weight":14,"compare_at_price":849900,"inventory_quantity":16,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906534687","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":56310557606274,"title":"61","option1":"61","option2":null,"option3":null,"sku":"30008082","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Teammachine R 01 THREE - 61","public_title":"61","options":["61"],"price":849900,"weight":14,"compare_at_price":849900,"inventory_quantity":3,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906534779","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

The Teammachine R 01 THREE is engineered for an uncompromising race performance, shaped by the same obsessive development and Red Bull Advanced Technologies collaboration as the flagship models. Speed remains the priority – everywhere, all the time. Our 01 Premium Carbon layup keeps this frameset exceptionally light and brutally efficient, with stiffness exactly where a racer needs it. SRAM adds high-performance shifting and braking with their Force AXS groupset with power meter for real-time performance data. The low-stack ICS Aero Gen 2 cockpit and rapid CR 50 SL Carbon tubeless-ready wheelset form a fast, cohesive system that’s optimized to hold speed deep into the red. The wide-stance fork completes the picture, reducing drag and stabilizing airflow for confidence and control at full race speed.

Technology

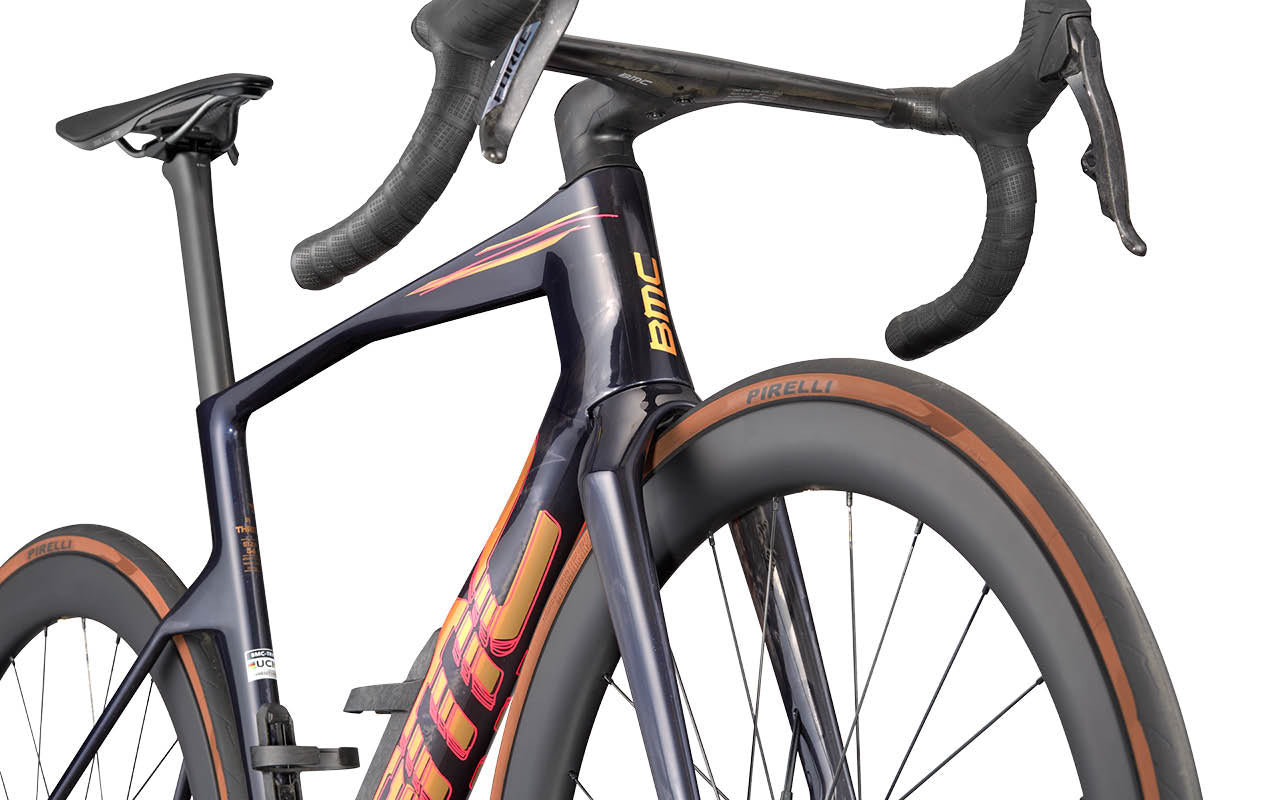

Halo Fork

To create speed, we pushed the fork legs wider, forming a distinctive ultra-wide front end. Halo shutters turbulent air away from the frame, kills aero stall and unlocks clean, usable speed.

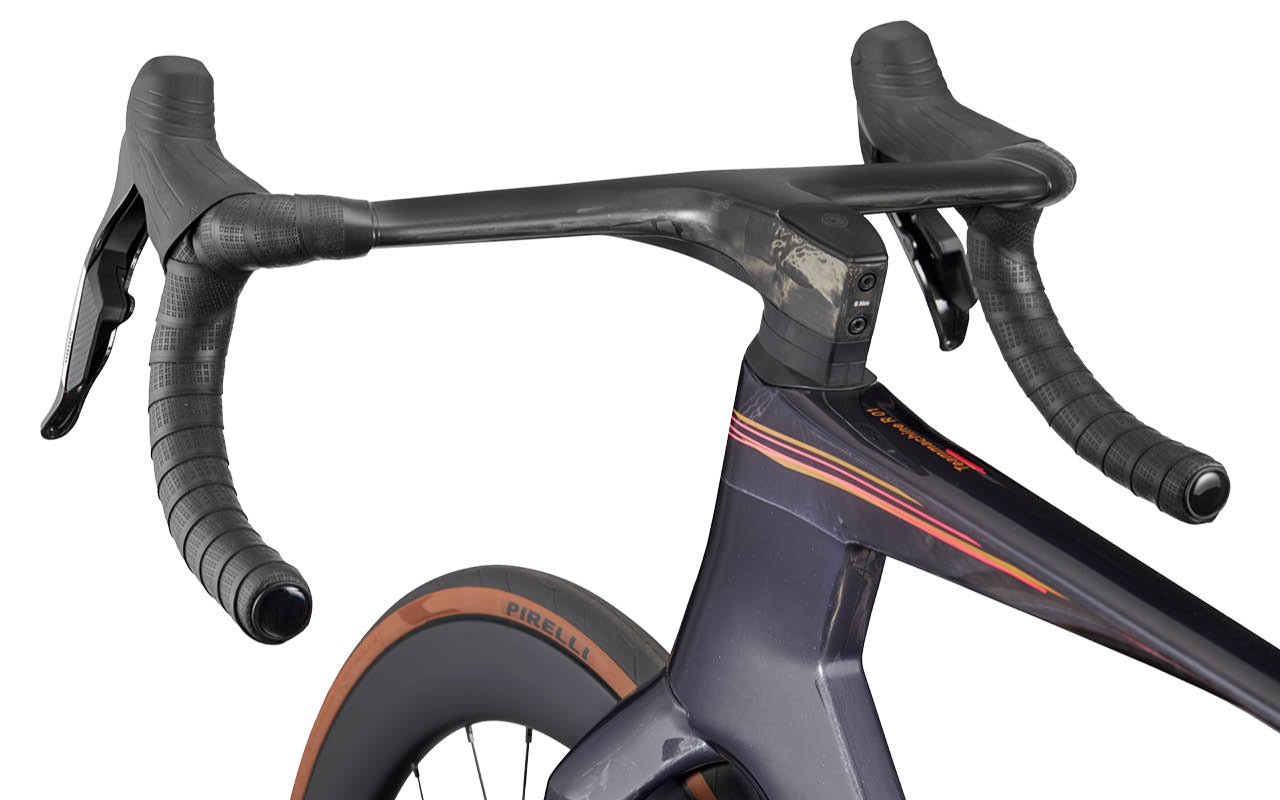

ICS Carbon Aero Cockpit

Developed with Tudor Pro Cycling Team, this ICS Aero Cockpit is by racers, for racers: stiffer, more aero, more comfortable, more tunable, and easier to assemble. And yes, it looks good too.

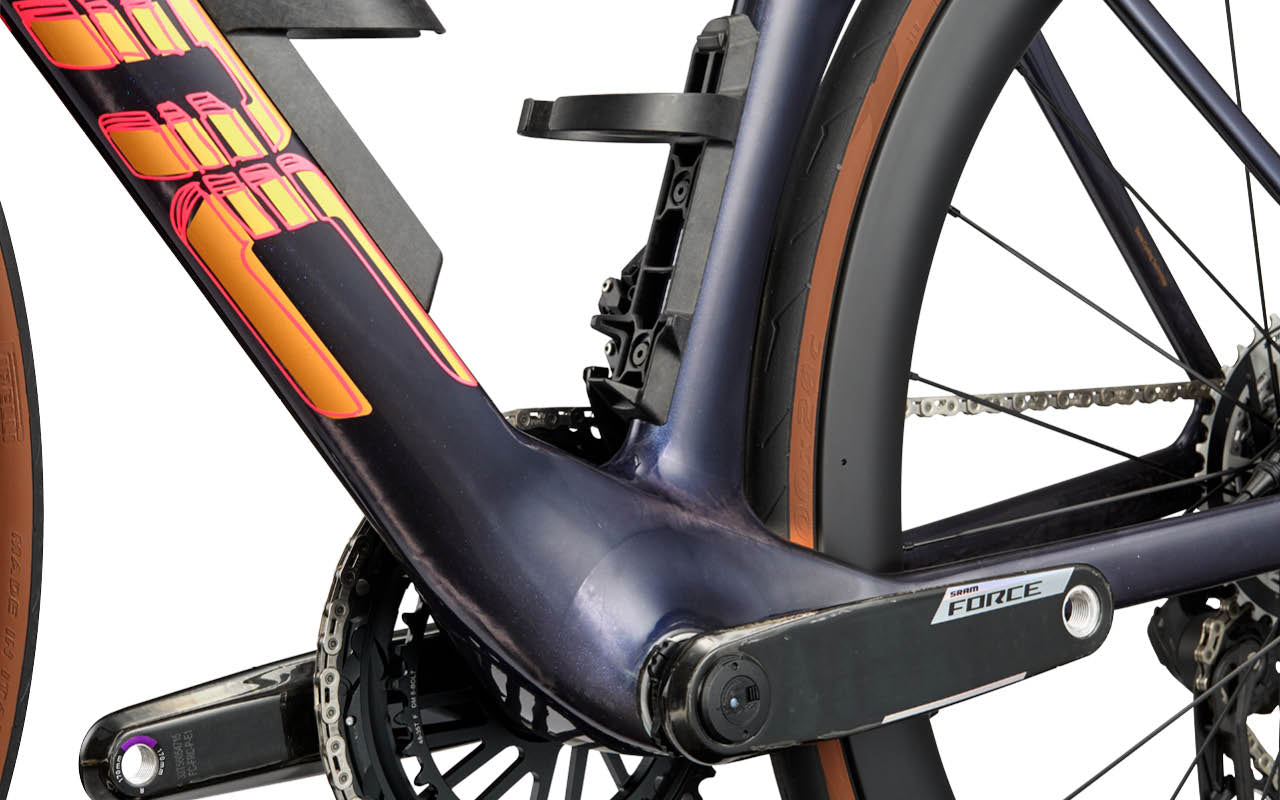

Deep Bottom Bracket Area

We call it the “Mariana Bottom Bracket” because it’s the deepest bottom bracket we have ever developed on a road bike. The reasoning? You get the cleanest air due to the surface area. UCI approved.

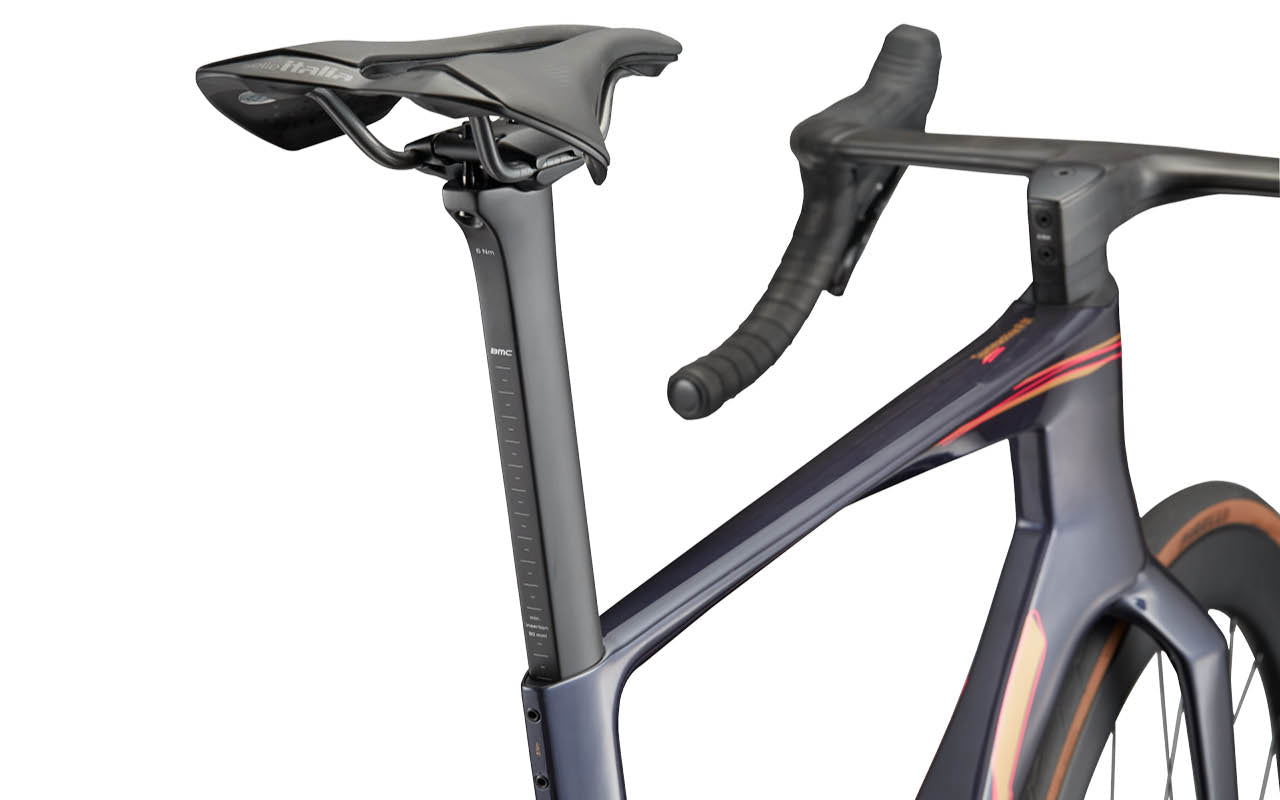

All-Aero Seatpost

A seatpost that’s slimmer, deeper, more compliant, and lighter than ever, with a clamp mechanism that’s easier to access and maintain. Also compatible with an integrated number-plate holder – making it the smartest way for race day.

Technical Overview

Frameset

Cockpit

Handlebar:
ICS Carbon Aero Gen 2 | One-Piece Full Carbon Cockpit | 135mm drop, 81mm reach, 12° flare

Grips:
BMC Tacky 3mm

Seat

Seatpost:
Teammachine R 01 | 01 Premium Carbon Seatpost | 0mm Offset Size 47-51 and 10mm Offset Size 54-61

Saddle:
Selle Italia SLR Elite | Lightweight Tubular Steel Rails | 145mm

Drivetrain

Crankset:
SRAM Force AXS (FC-FRC-P-E1)

Chainrings:
48-35T

Power Meter:
SRAM Force AXS Power Meter | Single Side (FC-FRC-P-E1)

Cassette:
SRAM Force (CS-XG-1270-E1)

Cassette Size:
10-36T

Chain:
SRAM Force (CN-FRC-E1)

Front Derailleur:
SRAM Force AXS (FD-FRC-E-E1)

Rear Derailleur:
SRAM Force AXS (RD-FRC-E-E1)

Shifters:
SRAM Force AXS (ED-FRC-E1)

Gears:
2 x 12

Bottom Bracket:
SRAM DUB PressFit Bottom Bracket (BB-DUB-PF-A1)

Brakes

Brake Levers / Calipers:
SRAM Force AXS (ED-FRC-E1)

Rotors:
SRAM CenterLine X Rotor (RT-CLN-X-A2)

Rotor Size (F/R):
160 / 160mm

Wheels

Rims:
CR 50 SL Carbon | Tubeless Ready | 50mm

Hubs (F/R):
TXC-812 & TXC-2406 Center Lock

Tires:
Pirelli P Zero Race TLR | Tubeless | 28mm

Tubeless Information:
Tubeless Rim | Tubeless Tires

Accessories

In the Box:
Aerocore Bottle Cages | High and low ICS top cones, 3x10mm spacers , 2x3mm spacers

Additional Information

Tire Clearance:
30mm measured tire

Weight without Pedals:
7.5kg | Size 54 as pictured with all accessories

ASTM Classification:
Level 1

System Weight Limit:
110kg

General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)

Size	47	51	54	56	58	61
Rider Height	<166	166-174	172-180	178-186	184-192	>190
Reach	368	378	387	393	402	409
Stack	504	528	548	563	582	608
Bar Drop	135	135	135	135	135	135
Bar Reach	81	81	81	81	81	81
Bar Width	370/420	370/420	390/440	390/440	390/440	390/440
BB Drop	69	69	69	69	69	69
Crank Length	165	170	170	170	172.5	172.5
Fork Length	367	367	367	367	367	367
Fork Rake	48	48	43	43	43	43
Front Center	568	586	589	599	614	630
Head Tube	108	133	149	165	184	211
Head Tube Angle	71.5°	71.5°	72.3°	72.3°	72.3°	72.3°
Rear Center	410	410	410	410	410	410
Seat Angle	74°	74°	73.5°	73.5°	73°	73°
Seat Tube	418	463	499	519	541	570
Seatpost Length	335	335	385	385	405	405
Seatpost Offset	0	0	10	10	10	10
Standover Height	721	755	781	799	813	836
Stem Angle	-17°	-17°	-17°	-17°	-17°	-17°
Stem Length	80	90	90	100	110	110
Top Tube	515	532	552	562	582	598
Trail	63	63	63	63	63	63
Wheelbase	968	986	989	999	1015	1030
